Advanced Aerosol Database: Crystalline Aerosol Directionality and Temperature Dependence
Crystalline aerosols, which are expected to form in hot environments (like hot Jupiter atmospheres) have three properties that make them distinct from amorphous aerosols.
They have sharper absorption features
Their absorption features are much more sensitive to changes in temperature
They are largely anisotropic, meaning that the ways in which they absorb incident light depends on their orientation relative to it.
The alignment of crystalline aerosols in planetary atmospheres can produce a myriad of spectacular optical phenomena due to their interaction with light. As hexagonal ice crystals fall throughout Earth’s atmosphere they align horizontally, generating subsuns and light pillars through reflection and sundogs through refraction. Parhelic circles form in the rare case of reflective vertically aligned crystals, while the 22 degree halo is due to randomly oriented refractive crystals. Crown flashes form when ice crystals orient themselves with the electric field above thunderclouds. These optical phenomena are not only beautiful, but are also a powerful diagnostic of the local atmospheric processes where the crystals form.
In this notebook, we explore how to generate forward models for directional dependent crystalline, mineral aerosols that are expected to form in hot Jupiter and brown dwarf environments.
For this notebook, you will need to download: aerosol_directional_database.hdf5, and place in inputs/opacity.
This notebook assumes knowledge of aerosol_database.ipynb, transmission_clouds.ipynb, and also the thermal scattering/reflection notebooks.
For more details, see Mullens & Lewis 2025 (in press).

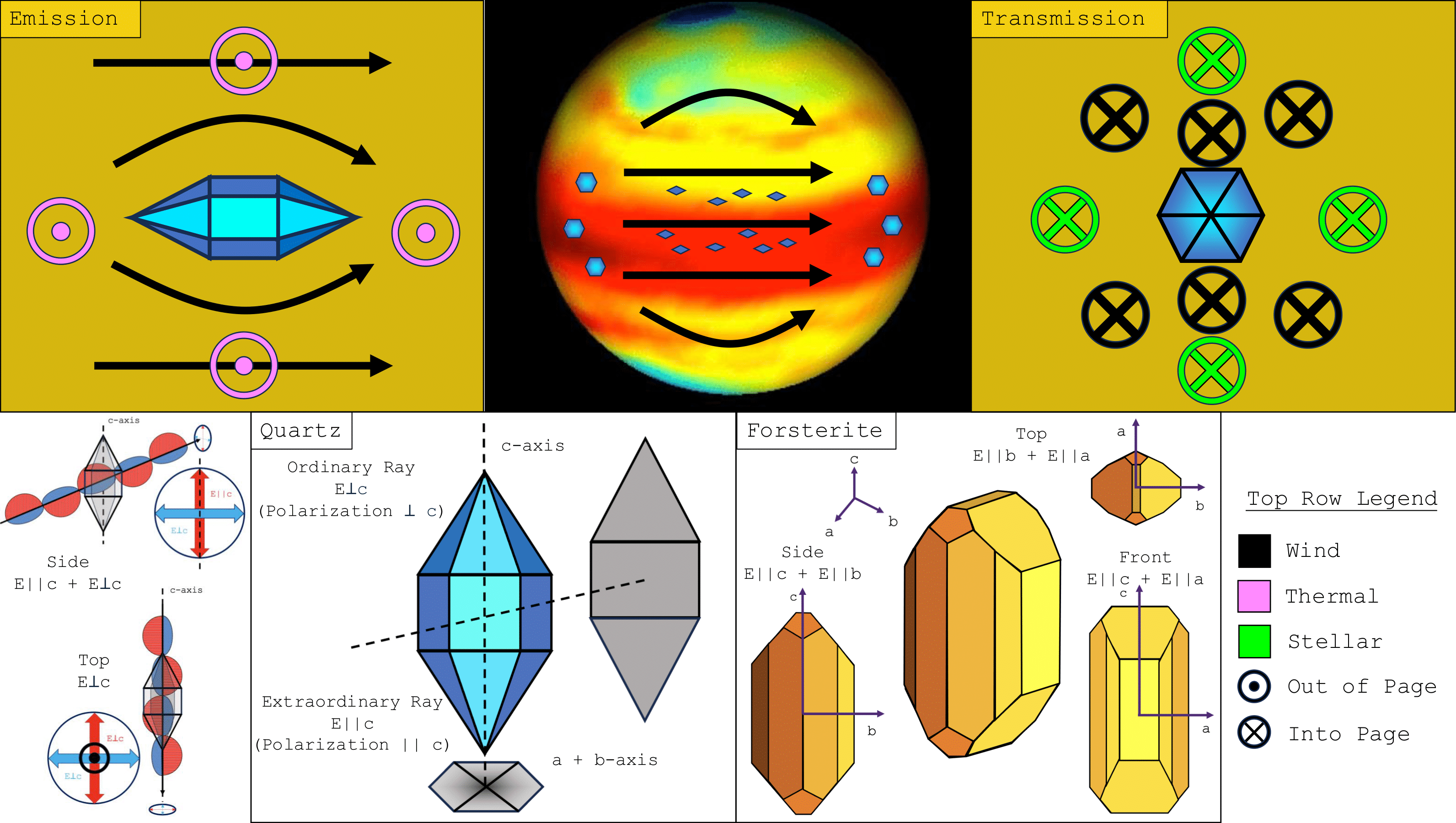

(Source: Figure 1 from Mullens & Lewis 2025 (in press).)
Note:
The aerosol directionality database is an optional download as of POSEIDON v.1.3.1, which can be downloaded from Zenodo.
The Directional Aerosol Database
First, lets look at the directional and temperature dependent aerosols included in the directional database:
[1]:
from POSEIDON.supported_chemicals import aerosol_directional_supported_species
print(aerosol_directional_supported_species)
['SiO2_alpha_crystal_A2_295K' 'SiO2_alpha_crystal_E_295K'
'SiO2_alpha_crystal_E_346K' 'SiO2_alpha_crystal_E_480K'
'SiO2_alpha_crystal_E_600K' 'SiO2_alpha_crystal_E_705K'
'SiO2_alpha_crystal_E_790K' 'SiO2_beta_crystal_E_1010K'
'SiO2_beta_crystal_E_1125K' 'SiO2_beta_crystal_E_1170K'
'SiO2_beta_crystal_E_1310K' 'SiO2_beta_crystal_E_1394K'
'SiO2_beta_crystal_E_1520K' 'SiO2_beta_crystal_E_1590K'
'SiO2_beta_crystal_E_1646K' 'SiO2_beta_cristobalite_E_1810K'
'SiO2_beta_cristobalite_E_1880K' 'SiO2_alpha_crystal_300K_extraordinary'
'SiO2_alpha_crystal_300K_ordinary'
'SiO2_alpha_crystal_551K_extraordinary'
'SiO2_alpha_crystal_551K_ordinary'
'SiO2_alpha_crystal_738K_extraordinary'
'SiO2_alpha_crystal_738K_ordinary'
'SiO2_alpha_crystal_833K_extraordinary'
'SiO2_alpha_crystal_833K_ordinary' 'SiO2_beta_crystal_928K_extraordinary'
'SiO2_beta_crystal_928K_ordinary' 'SiO2_beta_tridymite_295K'
'SiO2_beta_tridymite_500K' 'Mg2SiO4_295K_B1U' 'Mg2SiO4_546K_B1U'
'Mg2SiO4_950K_B1U' 'Mg2SiO4_1102K_B1U' 'Mg2SiO4_1147K_B1U'
'Mg2SiO4_1431K_B1U' 'Mg2SiO4_1518K_B1U' 'Mg2SiO4_1648K_B1U'
'Mg2SiO4_1742K_B1U' 'Mg2SiO4_1809K_B1U' 'Mg2SiO4_295K_B2U'
'Mg2SiO4_547K_B2U' 'Mg2SiO4_720K_B2U' 'Mg2SiO4_946K_B2U'
'Mg2SiO4_1122K_B2U' 'Mg2SiO4_1303K_B2U' 'Mg2SiO4_1417K_B2U'
'Mg2SiO4_1535K_B2U' 'Mg2SiO4_1617K_B2U' 'Mg2SiO4_1818K_B2U'
'Mg2SiO4_295K_B3U' 'Mg2SiO4_602K_B3U' 'Mg2SiO4_757K_B3U'
'Mg2SiO4_918K_B3U' 'Mg2SiO4_1055K_B3U' 'Mg2SiO4_1131K_B3U'
'Mg2SiO4_1256K_B3U' 'Mg2SiO4_1503K_B3U' 'Mg2SiO4_1793K_B3U'
'Mg2SiO4_1948K_B3U' 'Al2O3_alpha_crystal_300K_extraordinary'
'Al2O3_alpha_crystal_551K_extraordinary'
'Al2O3_alpha_crystal_738K_extraordinary'
'Al2O3_alpha_crystal_928K_extraordinary'
'Al2O3_alpha_crystal_300K_ordinary' 'Al2O3_alpha_crystal_551K_ordinary'
'Al2O3_alpha_crystal_738K_ordinary' 'Al2O3_alpha_crystal_928K_ordinary'
'Mg172Fe021SiO4_crystal_10K_Ex' 'Mg172Fe021SiO4_crystal_100K_Ex'
'Mg172Fe021SiO4_crystal_200K_Ex' 'Mg172Fe021SiO4_crystal_300K_Ex'
'Mg172Fe021SiO4_crystal_551K_Ex' 'Mg172Fe021SiO4_crystal_738K_Ex'
'Mg172Fe021SiO4_crystal_928K_Ex' 'Mg172Fe021SiO4_crystal_10K_Ey'
'Mg172Fe021SiO4_crystal_100K_Ey' 'Mg172Fe021SiO4_crystal_200K_Ey'
'Mg172Fe021SiO4_crystal_300K_Ey' 'Mg172Fe021SiO4_crystal_551K_Ey'
'Mg172Fe021SiO4_crystal_738K_Ey' 'Mg172Fe021SiO4_crystal_928K_Ey'
'Mg172Fe021SiO4_crystal_10K_Ez' 'Mg172Fe021SiO4_crystal_100K_Ez'
'Mg172Fe021SiO4_crystal_200K_Ez' 'Mg172Fe021SiO4_crystal_300K_Ez'
'Mg172Fe021SiO4_crystal_551K_Ez' 'Mg172Fe021SiO4_crystal_738K_Ez'
'Mg172Fe021SiO4_crystal_928K_Ez' 'Mg172Fe021SiO4_crystal_visnir_Ex'
'Mg172Fe021SiO4_crystal_visnir_Ey' 'Mg172Fe021SiO4_crystal_visnir_Ez'
'MgAl2O4_crystalline_natural_annealed_1223K'
'MgAl2O4_crystalline_natural' 'Mg092Fe009SiO3_crystal_10K_Ex'
'Mg092Fe009SiO3_crystal_100K_Ex' 'Mg092Fe009SiO3_crystal_200K_Ex'
'Mg092Fe009SiO3_crystal_300K_Ex' 'Mg092Fe009SiO3_crystal_551K_Ex'
'Mg092Fe009SiO3_crystal_738K_Ex' 'Mg092Fe009SiO3_crystal_928K_Ex'
'Mg092Fe009SiO3_crystal_10K_Ey' 'Mg092Fe009SiO3_crystal_100K_Ey'
'Mg092Fe009SiO3_crystal_200K_Ey' 'Mg092Fe009SiO3_crystal_300K_Ey'
'Mg092Fe009SiO3_crystal_551K_Ey' 'Mg092Fe009SiO3_crystal_738K_Ey'
'Mg092Fe009SiO3_crystal_928K_Ey' 'Mg092Fe009SiO3_crystal_10K_Ez'
'Mg092Fe009SiO3_crystal_100K_Ez' 'Mg092Fe009SiO3_crystal_200K_Ez'
'Mg092Fe009SiO3_crystal_300K_Ez' 'Mg092Fe009SiO3_crystal_551K_Ez'
'Mg092Fe009SiO3_crystal_738K_Ez' 'Mg092Fe009SiO3_crystal_928K_Ez'
'MgAl2O4_synthetic_10K' 'MgAl2O4_synthetic_100K' 'MgAl2O4_synthetic_300K'
'MgAl2O4_synthetic_551K' 'MgAl2O4_synthetic_738K'
'MgAl2O4_synthetic_928K' 'TiO2_anatase_extraordinary'
'TiO2_anatase_ordinary' 'TiO2_brookite_Ex' 'TiO2_brookite_Ey'
'TiO2_brookite_Ez' 'TiO2_rutile_extraordinary' 'TiO2_rutile_ordinary'
'Mg19Fe01SiO4_crystal_natural_Ex' 'Mg19Fe01SiO4_crystal_natural_Ey'
'Mg19Fe01SiO4_crystal_natural_Ez' 'Al2O3_amorph_compact'
'Al2O3_amorph_porous' 'Fe2SiO4_crystal_synthetic_Ex'
'Fe2SiO4_crystal_synthetic_Ey' 'Fe2SiO4_crystal_synthetic_Ez'
'CaAl12O19_crystal_natural_extraordinary'
'CaAl12O19_crystal_natural_ordinary' 'SiO2_alpha_crystal_300K_averaged'
'SiO2_beta_crystal_928K_averaged' 'Mg2SiO4_295K_averaged'
'Mg2SiO4_1000K_averaged' 'Mg092Fe009SiO3_crystal_300K_averaged'
'Mg092Fe009SiO3_crystal_928K_averaged' 'SiO2_alpha_cristobalite_295K']
For more details on the above aerosols, check out the Opacity Database page in the documentation.
Lets go ahead and query the database as is done in aerosol_database.ipynb
Lets first investigate crystalline room-temperature quartz, which is uniaxial crystal. Uniaxial crystals have their optical properties determined by two sets of refractive indices: one for the extraordinary axis and one for the ordinary axis.
Without getting into too many details, if you assume crystals are randomly oriented the optical properties can be approximated by 2/3 ordinary + 1/3 extraordinary. If the crystals are aligned (to either winds or EM fields), this will shift.
NOTE: Many of the temperature and directional dependent aerosols only have mid-infrared data (from 6.5 um to 30 um)
[2]:
from POSEIDON.core import wl_grid_constant_R
from POSEIDON.clouds import load_aerosol_grid, interpolate_sigma_Mie_grid
import matplotlib.pyplot as plt
import numpy as np
species = ['SiO2_alpha_crystal_300K_ordinary', 'SiO2_alpha_crystal_300K_extraordinary']
# Intialize wavelength grid
wl_min = 6.5 # Minimum wavelength (um)
wl_max = 12 # Maximum wavelength (um)
R = 10000 # Spectral resolution of grid
wl = wl_grid_constant_R(wl_min, wl_max, R)
# Load in the grid
grid_name = 'aerosol_directional'
aerosol_grid = load_aerosol_grid(species, grid = grid_name)
# Test to see if the cross sections come out with SiO2 particle, 0.01 um sized
r_m = 0.01
# This formula loads in the grid
sigma_Mie_interp_array = interpolate_sigma_Mie_grid(aerosol_grid, wl, [r_m, r_m], species,)
# Lets look at different mean radii
import matplotlib.pyplot as plt
fig_combined = plt.figure(constrained_layout=True, figsize=(16, 9))
colors = ['limegreen', 'darkturquoise']
# Create layout
axd = fig_combined.subplot_mosaic(
"""
A
B
C
"""
)
for n, s in enumerate(species):
# Lets load in the extinction cross section, asymmetry parameter, and single scattering albedo
eff_ext = sigma_Mie_interp_array[s]['eff_ext']
eff_w = sigma_Mie_interp_array[s]['eff_w']
eff_g = sigma_Mie_interp_array[s]['eff_g']
# Plot
axd['A'].plot(wl, np.log10(eff_ext), label = s, color = colors[n])
axd['B'].plot(wl, eff_w, label = s, color = colors[n])
axd['C'].plot(wl, eff_g, label = s, color = colors[n])

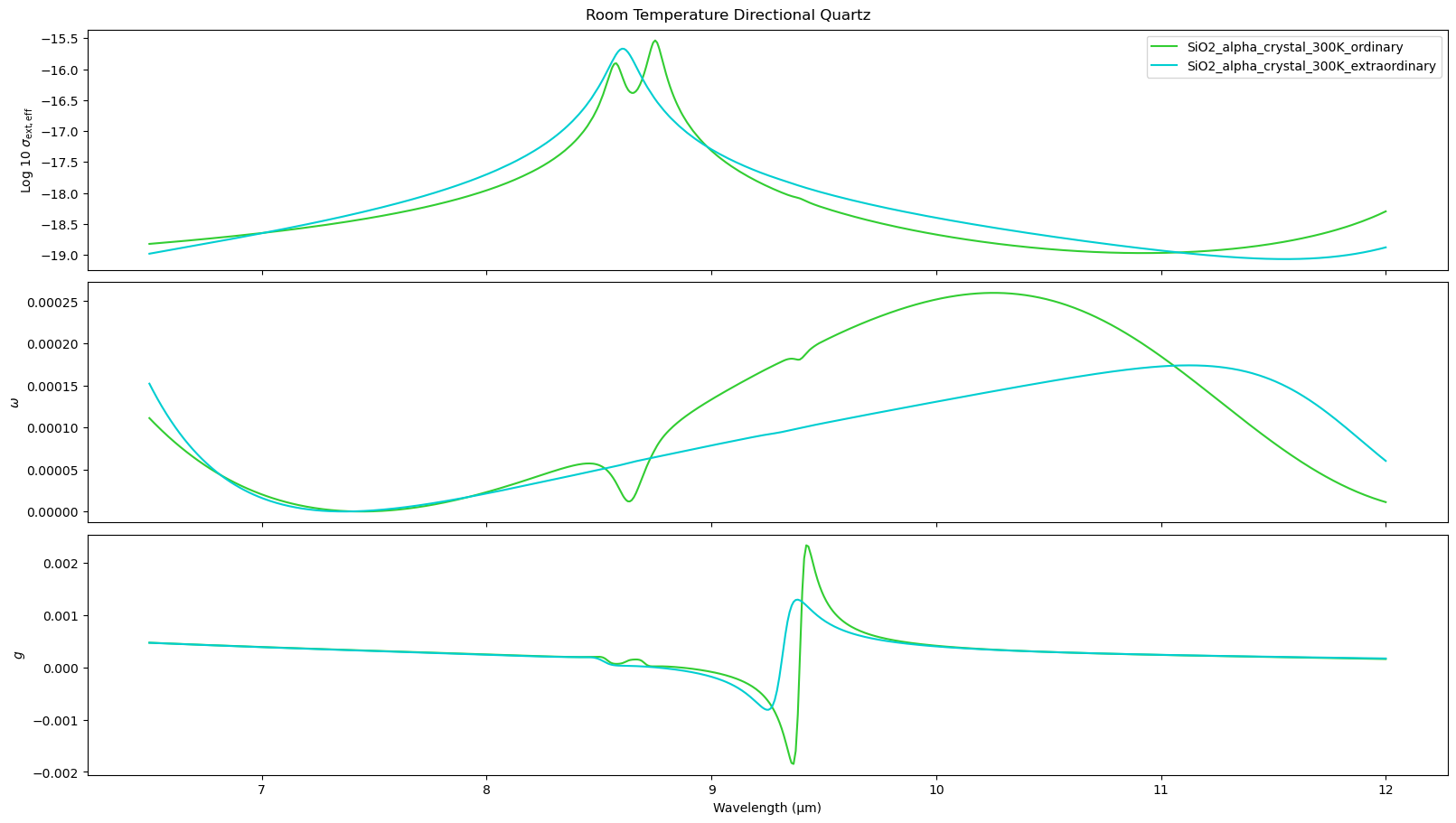

plt.suptitle('Room Temperature Directional Quartz')
axd['A'].set_ylabel('Log 10 $\sigma_{\mathrm{ext,eff}}$')
axd['A'].set_xticklabels([])
axd['A'].legend()
axd['B'].set_ylabel('$\omega$')
axd['B'].set_xticklabels([])
axd['C'].set_ylabel('$g$')
axd['C'].set_xlabel('Wavelength (μm)')
Reading in database for aerosol cross sections...
[2]:
Text(0.5, 0, 'Wavelength (μm)')
Increasing temperature will shift the absorption of quartz and changes its morphology. Quartz will undergo a phase transition and transform from \(\alpha\) quartz to \(\beta\) quartz at ~850K.
[3]:
from POSEIDON.core import wl_grid_constant_R
from POSEIDON.clouds import load_aerosol_grid, interpolate_sigma_Mie_grid
import matplotlib.pyplot as plt
import numpy as np
species = ['SiO2_alpha_crystal_300K_ordinary', 'SiO2_alpha_crystal_300K_extraordinary',
'SiO2_beta_crystal_928K_ordinary', 'SiO2_beta_crystal_928K_extraordinary']
# Intialize wavelength grid
wl_min = 6.5 # Minimum wavelength (um)
wl_max = 12 # Maximum wavelength (um)
R = 10000 # Spectral resolution of grid
wl = wl_grid_constant_R(wl_min, wl_max, R)
# Load in the grid
grid_name = 'aerosol_directional'
aerosol_grid = load_aerosol_grid(species, grid = grid_name)
# Test to see if the cross sections come out with SiO2 particle, 0.01 um sized
r_m = 0.01
# This formula loads in the grid
sigma_Mie_interp_array = interpolate_sigma_Mie_grid(aerosol_grid, wl, [r_m, r_m, r_m, r_m], species,)
# Lets look at different mean radii
import matplotlib.pyplot as plt
fig_combined = plt.figure(constrained_layout=True, figsize=(16, 4.5))
colors = ['limegreen', 'darkturquoise', 'magenta', 'orange']
# Create layout
axd = fig_combined.subplot_mosaic(
"""
A
"""
)
for n,s in enumerate(species):
# Lets load in the extinction cross section, asymmetry parameter, and single scattering albedo
eff_ext = sigma_Mie_interp_array[s]['eff_ext']
# Plot
axd['A'].plot(wl, np.log10(eff_ext), label = s, color = colors[n])

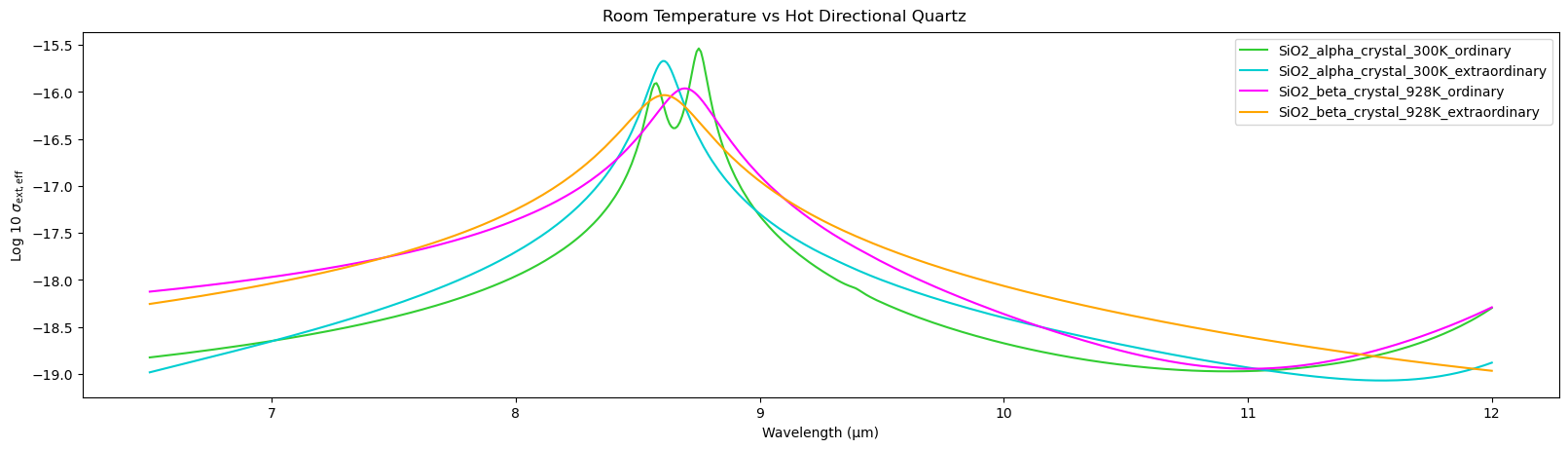

plt.suptitle('Room Temperature vs Hot Directional Quartz')
axd['A'].set_ylabel('Log 10 $\sigma_{\mathrm{ext,eff}}$')
axd['A'].legend()
axd['A'].set_xlabel('Wavelength (μm)')
Reading in database for aerosol cross sections...
[3]:
Text(0.5, 0, 'Wavelength (μm)')
Crystalline forsterite (Mg2SiO4) is biaxial, meaning it has three sets of refractive indices: E||c, E||b, E||a. For randomly oriented crystals, each refractive index gets a 1/3 weight. If the crystals are oriented, this can shift.
For crystalline forsterite, the lab data labels the refractive indices B1U, B2U, and B3U which correlate to symmetry groups. This correlates to E||c, E||b, and E||a.
The worlds of minerals have different notations for directions and how they map to c, b, a, so if you’re ever unsure, refer to the Zenodo table in Mullens & Lewis 2025 or the Opacity Database on POSEIDON’s documentation.
[4]:
from POSEIDON.core import wl_grid_constant_R
from POSEIDON.clouds import load_aerosol_grid, interpolate_sigma_Mie_grid
import matplotlib.pyplot as plt
import numpy as np
species = ['Mg2SiO4_295K_B1U','Mg2SiO4_295K_B2U','Mg2SiO4_295K_B3U']
# Intialize wavelength grid
wl_min = 6.5 # Minimum wavelength (um)
wl_max = 12 # Maximum wavelength (um)
R = 10000 # Spectral resolution of grid
wl = wl_grid_constant_R(wl_min, wl_max, R)
# Load in the grid
grid_name = 'aerosol_directional'
aerosol_grid = load_aerosol_grid(species, grid = grid_name)
# Test to see if the cross sections come out with SiO2 particle, 0.01 um sized
r_m = 0.01
# This formula loads in the grid
sigma_Mie_interp_array = interpolate_sigma_Mie_grid(aerosol_grid, wl, [r_m, r_m, r_m], species,)
# Lets look at different mean radii
import matplotlib.pyplot as plt
fig_combined = plt.figure(constrained_layout=True, figsize=(16, 9))
colors = ['limegreen', 'darkturquoise', 'dodgerblue']
# Create layout
axd = fig_combined.subplot_mosaic(
"""
A
B
C
"""
)
for n, s in enumerate(species):
# Lets load in the extinction cross section, asymmetry parameter, and single scattering albedo
eff_ext = sigma_Mie_interp_array[s]['eff_ext']
eff_w = sigma_Mie_interp_array[s]['eff_w']
eff_g = sigma_Mie_interp_array[s]['eff_g']
# Plot
axd['A'].plot(wl, np.log10(eff_ext), label = s, color = colors[n])
axd['B'].plot(wl, eff_w, label = s, color = colors[n])
axd['C'].plot(wl, eff_g, label = s, color = colors[n])

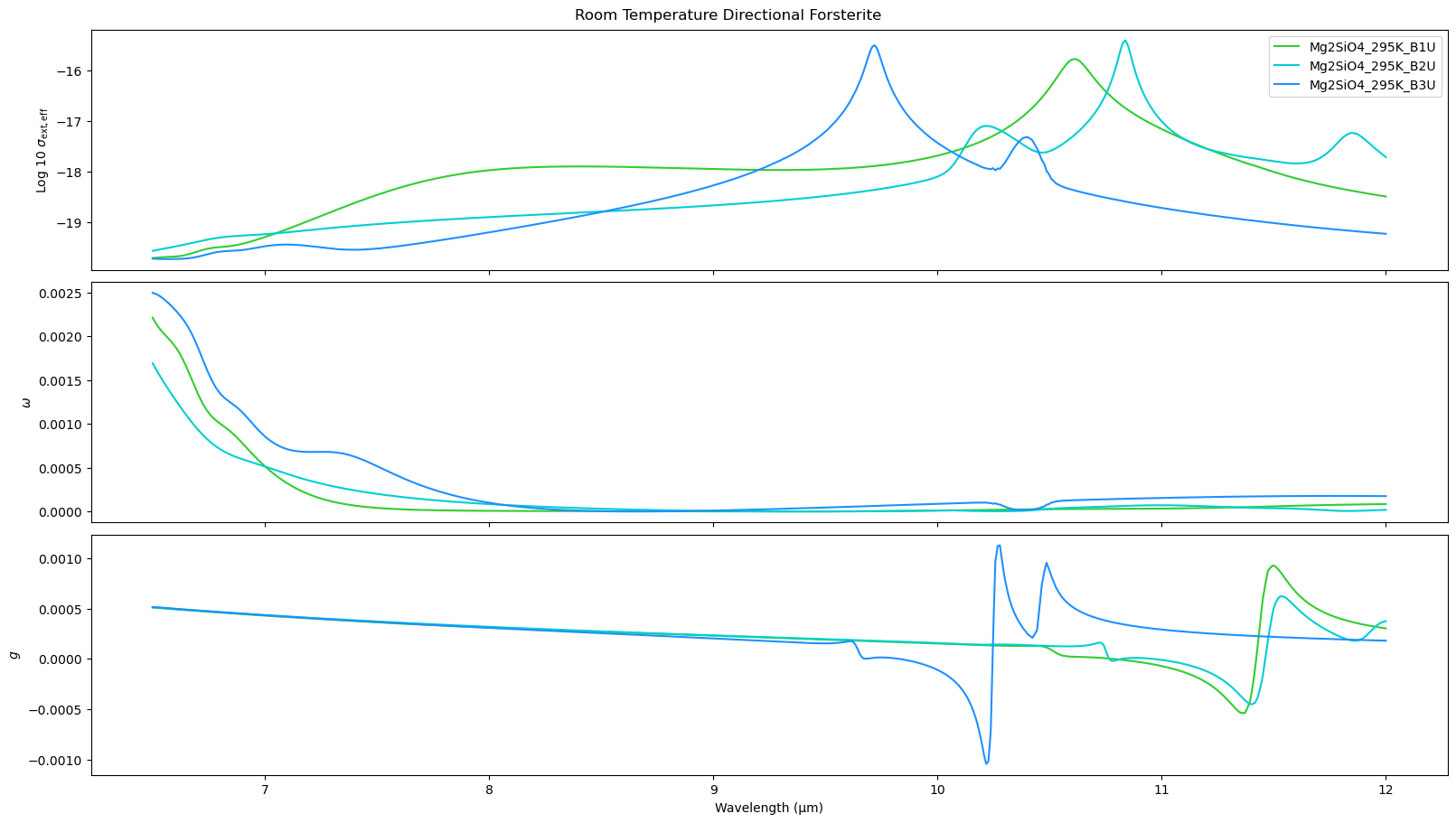

plt.suptitle('Room Temperature Directional Forsterite')
axd['A'].set_ylabel('Log 10 $\sigma_{\mathrm{ext,eff}}$')
axd['A'].set_xticklabels([])
axd['A'].legend()
axd['B'].set_ylabel('$\omega$')
axd['B'].set_xticklabels([])
axd['C'].set_ylabel('$g$')
axd['C'].set_xlabel('Wavelength (μm)')
Reading in database for aerosol cross sections...
[4]:
Text(0.5, 0, 'Wavelength (μm)')

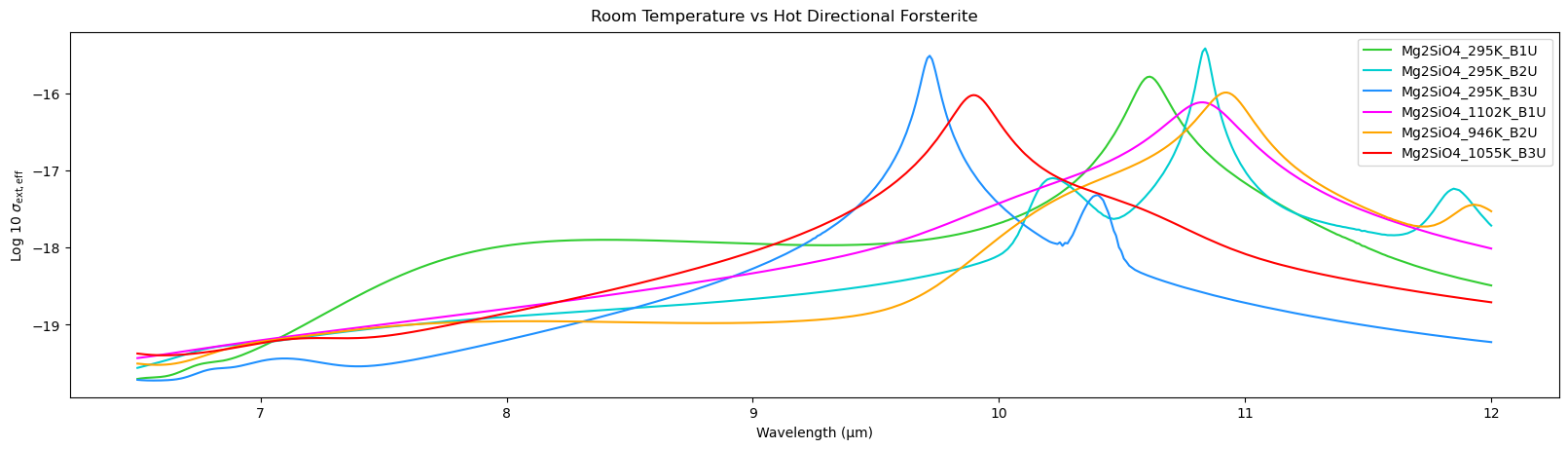

Lets increase the temperature of the forsterite and see what happens
[5]:
from POSEIDON.core import wl_grid_constant_R
from POSEIDON.clouds import load_aerosol_grid, interpolate_sigma_Mie_grid
import matplotlib.pyplot as plt
import numpy as np
species = ['Mg2SiO4_295K_B1U','Mg2SiO4_295K_B2U','Mg2SiO4_295K_B3U',
'Mg2SiO4_1102K_B1U','Mg2SiO4_946K_B2U','Mg2SiO4_1055K_B3U']
# Intialize wavelength grid
wl_min = 6.5 # Minimum wavelength (um)
wl_max = 12 # Maximum wavelength (um)
R = 10000 # Spectral resolution of grid
wl = wl_grid_constant_R(wl_min, wl_max, R)
# Load in the grid
grid_name = 'aerosol_directional'
aerosol_grid = load_aerosol_grid(species, grid = grid_name)
# Test to see if the cross sections come out with SiO2 particle, 0.01 um sized
r_m = 0.01
# This formula loads in the grid
sigma_Mie_interp_array = interpolate_sigma_Mie_grid(aerosol_grid, wl, [r_m, r_m, r_m, r_m, r_m, r_m], species,)
# Lets look at different mean radii
import matplotlib.pyplot as plt
fig_combined = plt.figure(constrained_layout=True, figsize=(16, 4.5))
colors = ['limegreen', 'darkturquoise','dodgerblue', 'magenta', 'orange', 'red']
# Create layout
axd = fig_combined.subplot_mosaic(
"""
A
"""
)
for n,s in enumerate(species):
# Lets load in the extinction cross section, asymmetry parameter, and single scattering albedo
eff_ext = sigma_Mie_interp_array[s]['eff_ext']
# Plot
axd['A'].plot(wl, np.log10(eff_ext), label = s, color = colors[n])
plt.suptitle('Room Temperature vs Hot Directional Forsterite')
axd['A'].set_ylabel('Log 10 $\sigma_{\mathrm{ext,eff}}$')
axd['A'].legend()
axd['A'].set_xlabel('Wavelength (μm)')
Reading in database for aerosol cross sections...
[5]:
Text(0.5, 0, 'Wavelength (μm)')
Forward Models with Aerosol Directionality
We have introduced four new variations to the aerosol ‘slab’ model to account for directionality of crystalline aerosols.
Two are for uniaxial crystals (like quartz) and two are for biaxial crystals (like forsterite, enstatite, etc).
For each, there is a random variety that assumes the crystals have a random orientation. This model reduces the number of free parameters in the model by assuming that the cross sections are appropriately weighted (2/3+1/3 for uniaxial, 1/3+1/3+1/3 for biaxial).
The other variety does not assume this, but instead assumed the mixing ratio of each orientation is a free parameters.
All four models assume the clouds are located in the same pressure region, and have the same mean particle size.
Lets make all four models for WASP-17b
For uniaxial models, the assumed order of aerosols is extraordinary first, then ordinary
For biaxial models, the assumed order of aerosols is E||c, E||b, E||a
If you are unsure of the correct order, see the Opacity Database page in the POSEIDON documentation.
[6]:
from POSEIDON.constants import R_Sun, R_J
from POSEIDON.core import create_star, create_planet, load_data, define_model, \
wl_grid_constant_R, set_priors, read_opacities
from POSEIDON.visuals import plot_data, plot_spectra_retrieved, plot_PT_retrieved, \
plot_chem_retrieved
from POSEIDON.retrieval import run_retrieval
from POSEIDON.utility import read_retrieved_spectrum, read_retrieved_PT, \
read_retrieved_log_X, plot_collection
from POSEIDON.corner import generate_cornerplot
import numpy as np
from scipy.constants import parsec as pc
do_retrieval = True
#***** Model wavelength grid *****#
wl_min = 5 # Minimum wavelength (um) 0.55
wl_max = 30.0 # Maximum wavelength (um) 3.00
R = 20000 # Spectral resolution of grid
# We need to provide a model wavelength grid to initialise instrument properties
wl = wl_grid_constant_R(wl_min, wl_max, R)
#***** Define stellar properties *****#
R_s = 1.49*R_Sun # Stellar radius (m)
T_s = 6550.0 # Stellar effective temperature (K)
err_T_s = 100 # Value in ExoMast
Met_s = -0.25 # Stellar metallicity [log10(Fe/H_star / Fe/H_solar)]
log_g_s = 4.2 # Stellar log surface gravity (log10(cm/s^2) by convention)
# Create the stellar object
star = create_star(R_s, T_s, log_g_s, Met_s, T_eff_error = err_T_s,
stellar_grid = 'phoenix', wl = wl)
#***** Define planet properties *****#
planet_name = 'WASP-17b' # Planet name used for plots, output files etc.
R_p = 1.87*R_J # Planetary radius (m)
log_g_p = 2.7426 # Gravitational field of planet (m/s^2)
T_eq = 1699 # Equilibrium temperature (K)
d = 405.91*pc # Distance to system (m)
# Create the planet object
planet = create_planet(planet_name, R_p, log_g = log_g_p, T_eq = T_eq, d = d)
#***** Define model *****#
model_name_SiO2_random = 'Alpha-Quartz-Random-Orientation'
bulk_species = ['H2', 'He'] # H2 + He comprises the bulk atmosphere
param_species = ['H2O']
aerosol_species = ['SiO2_alpha_crystal_300K_ordinary','SiO2_alpha_crystal_300K_extraordinary',]
model_random_sio2 = define_model(model_name_SiO2_random, bulk_species, param_species,
PT_profile = 'isotherm',
cloud_model = 'Mie', cloud_type = 'uniaxial_random_slab', #<------ set cloud_type = unixial_random_slab
aerosol_species = aerosol_species,
)
model_name_SiO2_directional = 'Beta-Quartz-Directional'
aerosol_species = ['SiO2_beta_crystal_928K_ordinary', 'SiO2_beta_crystal_928K_extraordinary']
model_directional_sio2 = define_model(model_name_SiO2_directional, bulk_species, param_species,
PT_profile = 'isotherm',
cloud_model = 'Mie', cloud_type = 'uniaxial_slab', #<------ set cloud_type = unixial_slab
aerosol_species = aerosol_species,
)
model_name_Mg2SiO4_random = 'Room_Temp_Mg2SiO4_Random_Orientation'
bulk_species = ['H2', 'He'] # H2 + He comprises the bulk atmosphere
param_species = ['H2O']
aerosol_species = ['Mg2SiO4_295K_B1U','Mg2SiO4_295K_B2U','Mg2SiO4_295K_B3U',]
model_random_mg2sio4 = define_model(model_name_Mg2SiO4_random, bulk_species, param_species,
PT_profile = 'isotherm',
cloud_model = 'Mie', cloud_type = 'biaxial_random_slab', #<------ set cloud_type = biaxial_random_slab
aerosol_species = aerosol_species,
)
model_name_Mg2SiO4_directional = 'Hot_Temp_Mg2SiO4_Directional'
aerosol_species = ['Mg2SiO4_1102K_B1U','Mg2SiO4_946K_B2U','Mg2SiO4_1055K_B3U']
model_directional_mg2sio4 = define_model(model_name_Mg2SiO4_directional, bulk_species, param_species,
PT_profile = 'isotherm',
cloud_model = 'Mie', cloud_type = 'biaxial_slab', #<------ set cloud_type = biaxial_slab
aerosol_species = aerosol_species,
)
This model assumes the first aerosol is ordinary (2/3 weight), then extraordinary (1/3 weight)
This model assumes the first aerosol is ordinary, then extraordinary
This model assumes the aerosols are in this order: E||c, E||b, E||a (1/3 weighting each is assumed)
This model assumes the aerosols are in this order: E||c, E||b, E||a
Lets print out the cloud model params for the above models.
Note that the random orientation models have less free parameters but stricter assumptions, whereas the directional models allow the data to pick the most favored crystal orientation (if you are running retrievals).
[7]:
print(model_random_sio2['cloud_param_names'])
print()
print(model_directional_sio2['cloud_param_names'])
print()
print(model_random_mg2sio4['cloud_param_names'])
print()
print(model_directional_mg2sio4['cloud_param_names'])
['log_P_top_slab' 'Delta_log_P' 'log_r_m_uniaxial' 'log_X_uniaxial']
['log_P_top_slab' 'Delta_log_P' 'log_r_m_uniaxial' 'log_X_ordinary'
'log_X_extraordinary']
['log_P_top_slab' 'Delta_log_P' 'log_r_m_biaxial' 'log_X_biaxial']
['log_P_top_slab' 'Delta_log_P' 'log_r_m_biaxial' 'log_X_Ec' 'log_X_Eb'
'log_X_Ea']
[8]:
# Some nominal values for W17b's atmosphere
R_p_ref = 1.69 * R_J
T = 1271.9
log_H2O = -2.96
log_P_top_slab = -6.60
Delta_log_P = 1.96
log_r_m = -1.85
# Atmospheric pressure grid
P_min = 1.0e-8 # 10 nbar
P_max = 100 # 10 bar
N_layers = 100 # 100 layers
# Let's space the layers uniformly in log-pressure
P = np.logspace(np.log10(P_max), np.log10(P_min), N_layers)
# Specify the reference pressure
P_ref = 10.0 # Retrieved R_p_ref parameter will be the radius at 10 bar
For the directional models, we will model the expected cross section (in transmission geoemtries) if the aerosols are mechanically aligned to the winds (labeled `Top’ in Mullens & Lewis 2025)
[9]:
# Mixing ratio of aerosols
# Random models
log_X_uniaxial = -11.23
log_X_biaxial = -11.23
# Directional models
# Top oriented crystals are 100% ordinary
log_X_ordinary = -11.23
log_X_extraordinary = -50
# Top oriented biaxial crystals are 50% Eb and 50% Ea
log_X_Ec = -50
log_X_Eb = np.log10((10**log_X_biaxial)*0.5)
log_X_Ea = np.log10((10**log_X_biaxial)*0.5)
[10]:
from POSEIDON.core import make_atmosphere
PT_params = np.array([T])
log_X_params = np.array([log_H2O])
# Random orientation uniaxial
cloud_params = np.array([log_P_top_slab, Delta_log_P, log_r_m, log_X_uniaxial])
atmosphere_random_sio2 = make_atmosphere(planet, model_random_sio2, P, P_ref, R_p_ref, PT_params, log_X_params, cloud_params)
# Directional uniaxial
cloud_params = np.array([log_P_top_slab, Delta_log_P, log_r_m, log_X_ordinary, log_X_extraordinary])
atmosphere_directional_sio2 = make_atmosphere(planet, model_directional_sio2, P, P_ref, R_p_ref, PT_params, log_X_params, cloud_params)
# Random Orientation biaxial
cloud_params = np.array([log_P_top_slab, Delta_log_P, log_r_m, log_X_biaxial])
atmosphere_random_mg2sio4 = make_atmosphere(planet, model_random_mg2sio4, P, P_ref, R_p_ref, PT_params, log_X_params, cloud_params)
# Directional biaxial
cloud_params = np.array([log_P_top_slab, Delta_log_P, log_r_m, log_X_Ec, log_X_Eb, log_X_Ea])
atmosphere_directional_mg2sio4 = make_atmosphere(planet, model_directional_mg2sio4, P, P_ref, R_p_ref, PT_params, log_X_params, cloud_params)
[ ]:
from POSEIDON.core import read_opacities
from POSEIDON.core import define_model
opacity_treatment = 'opacity_sampling'
# Define fine temperature grid (K)
T_fine_min = 1000 # Our model is isothermal at 1271K
T_fine_max = 1500 # We we can set a strict min and max temperature for the opac object
T_fine_step = 10 # 10 K steps are a good tradeoff between accuracy and RAM
T_fine = np.arange(T_fine_min, (T_fine_max + T_fine_step), T_fine_step)
# Define fine pressure grid (log10(P/bar))
log_P_fine_min = -6.0 # 1 ubar is the lowest pressure in the opacity database
log_P_fine_max = 2.0 # 100 bar is the highest pressure in the opacity database
log_P_fine_step = 0.2 # 0.2 dex steps are a good tradeoff between accuracy and RAM
log_P_fine = np.arange(log_P_fine_min, (log_P_fine_max + log_P_fine_step),
log_P_fine_step)
#***** Specify fixed atmospheric settings for retrieval *****#
# Atmospheric pressure grid
P_min = 1.0e-8 # 10 nbar
P_max = 100 # 10 bar
N_layers = 100 # 100 layers
# Let's space the layers uniformly in log-pressure
P = np.logspace(np.log10(P_max), np.log10(P_min), N_layers)
# Specify the reference pressure
P_ref = 10.0 # Retrieved R_p_ref parameter will be the radius at 10 bar
# Now we can pre-interpolate the sampled opacities (may take up to a minute)
# Need to create separate opacities for each aerosol
print('Making opac object with room temperature SiO2 opacities')
opac_sio2_room_temp = read_opacities(model_random_sio2, wl, opacity_treatment, T_fine, log_P_fine)
# Creating separate opacities for hot temperature SiO2
# This function takes the opac object, and just switches what aerosols are stored in it, making a copy
# and avoids having to reload gas opacities.
from POSEIDON.clouds import switch_aerosol_in_opac
print()
print('Making opac object with hot SiO2 opacities')
opac_sio2_hot_temp = switch_aerosol_in_opac(model_directional_sio2, opac_sio2_room_temp)
# Creating separate opacities for room temperature Mg2SiO4
from POSEIDON.clouds import switch_aerosol_in_opac
print()
print('Making opac object with room temperature Mg2SiO4 opacities')
opac_mg2sio4_room_temp = switch_aerosol_in_opac(model_random_mg2sio4, opac_sio2_room_temp)
# Creating separate opacities for room temperature Mg2SiO4
from POSEIDON.clouds import switch_aerosol_in_opac
print()
print('Making opac object with hot Mg2SiO4 opacities')
opac_mg2sio4_hot_temp = switch_aerosol_in_opac(model_directional_mg2sio4, opac_sio2_room_temp)
Making opac object with room temperature SiO2 opacities
Reading in cross sections in opacity sampling mode...
H2-H2 done
H2-He done
H2O done
Reading in database for aerosol cross sections...
Opacity pre-interpolation complete.
Making opac object with hot SiO2 opacities
Reading in database for aerosol cross sections...
Making opac object with room temperature Mg2SiO4 opacities
Reading in database for aerosol cross sections...
Making opac object with hot Mg2SiO4 opacities
Reading in database for aerosol cross sections...
[12]:
from POSEIDON.core import compute_spectrum
from POSEIDON.visuals import plot_spectra
from POSEIDON.utility import plot_collection

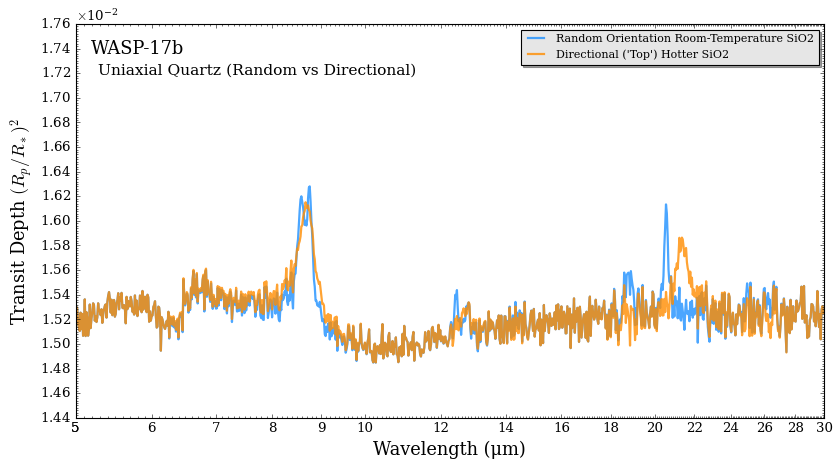

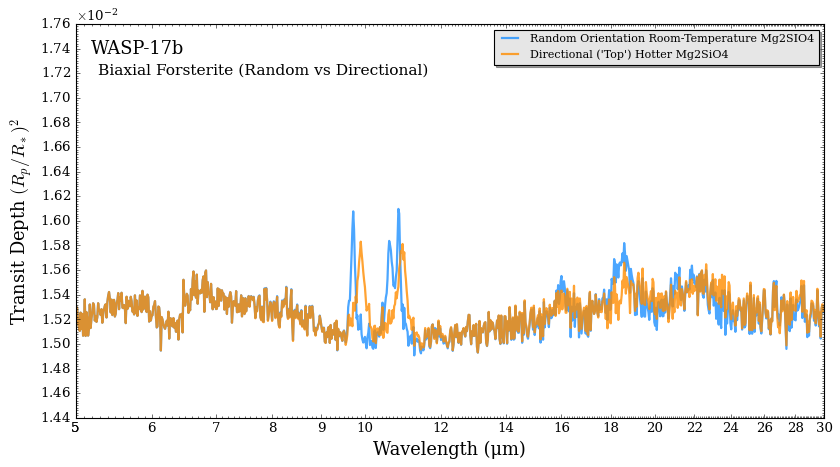

# Generate our transmission spectra
spectrum_random_sio2 = compute_spectrum(planet, star, model_random_sio2, atmosphere_random_sio2, opac_sio2_room_temp, wl,
spectrum_type = 'transmission')
spectrum_directional_sio2 = compute_spectrum(planet, star, model_directional_sio2, atmosphere_directional_sio2, opac_sio2_hot_temp, wl,
spectrum_type = 'transmission')
spectrum_random_mg2sio4 = compute_spectrum(planet, star, model_random_mg2sio4, atmosphere_random_mg2sio4, opac_mg2sio4_room_temp, wl,
spectrum_type = 'transmission')
spectrum_directional_mg2sio4 = compute_spectrum(planet, star, model_directional_mg2sio4, atmosphere_directional_mg2sio4, opac_mg2sio4_hot_temp, wl,
spectrum_type = 'transmission')
[13]:
spectra = plot_collection(spectrum_random_sio2, wl, collection = [])
spectra = plot_collection(spectrum_directional_sio2, wl, collection = spectra)
# Produce figure and save to file
fig = plot_spectra(spectra, planet,
plt_label ='Uniaxial Quartz (Random vs Directional)',
plot_full_res = False, R_to_bin = 500,
figure_shape = 'wide',
spectra_labels = ['Random Orientation Room-Temperature SiO2', 'Directional (\'Top\') Hotter SiO2'],
colour_list = ['dodgerblue','darkorange'])
[14]:
spectra = plot_collection(spectrum_random_mg2sio4, wl, collection = [])
spectra = plot_collection(spectrum_directional_mg2sio4, wl, collection = spectra)
# Produce figure and save to file
fig = plot_spectra(spectra, planet,
plt_label ='Biaxial Forsterite (Random vs Directional)',
plot_full_res = False, R_to_bin = 500,
figure_shape = 'wide',
spectra_labels = ['Random Orientation Room-Temperature Mg2SIO4', 'Directional (\'Top\') Hotter Mg2SiO4'],
colour_list = ['dodgerblue','darkorange'])
