Transmission Spectra Model Visuals
Contribution visuals are an important tool for interpreting forward models and retrieved spectra.
We differentiate here between two types of contribution visuals: (i) spectral decomposition plots, which highlight the impact of each chemical species on a spectrum; and (ii) pressure contribution plots, which highlight the atmospheric layers driving the formation of spectral features.
In this notebook, we will take HD 189733 b (a hot Jupiter) as an example forward model and analyse:
The spectral components of a transmission spectrum.
Where in the forward model atmosphere the spectrum forms.
Which pressure regions are probed at different wavelengths.
First, let’s define our wavelength, planet, star, model, and opac objects.
All of these steps are the same as any forward model with POSEIDON.
Warning:
If you downloaded the aerosol database hdf5 file for v1.2, you will need to download the new version released with v1.3.1, which has updated, more accurate aerosol scattering properties. You can find the updated aerosol database on Zenodo.
Note:
If you end up using the spectral/pressure contribution functions to visualise your results in a publication, please don’t forget to cite Mullens et al. (2024) where contribution functions were first developed for POSEIDON.
[1]:
from POSEIDON.constants import R_Sun, R_J, M_J
from POSEIDON.core import create_star, create_planet, define_model, \
wl_grid_constant_R, read_opacities
import numpy as np
#***** Model wavelength grid *****#
wl_min = 0.2 # Minimum wavelength (um)
wl_max = 12.0 # Maximum wavelength (um)
R = 5000 # Spectral resolution of grid
wl = wl_grid_constant_R(wl_min, wl_max, R)
[2]:
#***** Define planet properties *****#
planet_name = 'HD 189733b' # Planet name used for plots, output files etc.
R_p = 1.13*R_J # Planetary radius (m)
M_p = 1.129*M_J # Planetary mass (kg)
# Create the planet object
planet = create_planet(planet_name, R_p, mass = M_p)
[3]:
#***** Define stellar properties *****#
R_s = 0.751*R_Sun # Stellar radius (m)
T_s = 5052 # Stellar effective temperature (K)
Met_s = 0.13 # Stellar metallicity [log10(Fe/H_star / Fe/H_solar)] <--- note: for PHOENIX, only the solar metallicity models are used
log_g_s = 4.58 # Stellar log surface gravity (log10(cm/s^2) by convention)
# Create the stellar object
star = create_star(R_s, T_s, log_g_s, Met_s, wl = wl, stellar_grid = 'phoenix')
Here we will use a nominal chemical inventory for hot Jupiters: \(\rm{CH_4}\), \(\rm{CO}\), \(\rm{CO_2}\), \(\rm{HCN}\), \(\rm{H_2 O}\), \(\rm{K}\), \(\rm{Na}\), and \(\rm{NH_3}\). We also include an aerosol species that is predicted to form at the limb of HD 189733 b from GCM chemical disequilibrium predictions, namely enstatite (\(\rm{MgSiO_3}\)).
[4]:
#***** Define model *****#
model_name_contribution_transmission = 'Contribution-Transmission'
bulk_species = ['H2', 'He']
param_species = ['CH4', 'CO', 'CO2', 'HCN', 'H2O','K','Na','NH3'] # <---- Nominal chemical inventory
aerosol_species = ['MgSiO3'] # <--- Enstatite
# Create the model object
model_contribution_transmission = define_model(model_name_contribution_transmission,
bulk_species, param_species,
PT_profile = 'isotherm',
cloud_model = 'Mie',cloud_type = 'slab',
aerosol_species = aerosol_species)
[5]:
#***** Read opacity data *****#
opacity_treatment = 'opacity_sampling'
# Define fine temperature grid (K)
T_fine_min = 500 # Same as prior range for T
T_fine_max = 1300 # Same as prior range for T
T_fine_step = 10 # 10 K steps are a good tradeoff between accuracy and RAM
T_fine = np.arange(T_fine_min, (T_fine_max + T_fine_step), T_fine_step)
# Define fine pressure grid (log10(P/bar))
log_P_fine_min = -6.0 # 1 ubar is the lowest pressure in the opacity database
log_P_fine_max = 2.0 # 100 bar is the highest pressure in the opacity database
log_P_fine_step = 0.2 # 0.2 dex steps are a good tradeoff between accuracy and RAM
log_P_fine = np.arange(log_P_fine_min, (log_P_fine_max + log_P_fine_step),
log_P_fine_step)
#***** Specify fixed atmospheric settings for retrieval *****#
# Atmospheric pressure grid
P_min = 1.0e-8 # 10 nbar
P_max = 100 # 10 bar
N_layers = 100 # 100 layers
# Let's space the layers uniformly in log-pressure
P = np.logspace(np.log10(P_max), np.log10(P_min), N_layers)
# Specify the reference pressure
P_ref = 1
# Now we can pre-interpolate the sampled opacities (may take up to a minute)
opac = read_opacities(model_contribution_transmission, wl, opacity_treatment, T_fine, log_P_fine)
Reading in cross sections in opacity sampling mode...
H2-H2 done
H2-He done
H2-CH4 done
CO2-H2 done
CO2-CO2 done
CO2-CH4 done
CH4 done
CO done
CO2 done
HCN done
H2O done
K done
Na done
NH3 done
Reading in database for aerosol cross sections...
Opacity pre-interpolation complete.
Let’s define our forward model atmosphere. Here I have pulled the retrieved values of an HD 189733 b transmission retrieval performed and reported in Mullens et al 2024.
[6]:
from POSEIDON.core import make_atmosphere
R_p_ref = 1.126 * R_J
T = 775.1
log_CH4 = -8.56
log_CO = -6.74
log_CO2 = -6.90
log_HCN = -5.04
log_H2O = -3.94
log_K = -8.85
log_Na = -9.69
log_NH3 = -9.08
log_P_top_slab_MgSiO3 = -7.22
Delta_log_P_MgSiO3 = 2.97
log_r_m_MgSiO3 = -1.34
log_X_MgSiO3 = -12.5
PT_params = np.array([T])
log_X_params = np.array([log_CH4, log_CO, log_CO2, log_HCN, log_H2O, log_K, log_Na, log_NH3])
cloud_params = np.array([log_P_top_slab_MgSiO3, Delta_log_P_MgSiO3, log_r_m_MgSiO3, log_X_MgSiO3])
# Make atmosphere
atmosphere_contribution_transmission = make_atmosphere(planet, model_contribution_transmission,
P, P_ref, R_p_ref, PT_params, log_X_params, cloud_params)
Spectral Decomposition
The spectral contribution function (spectral_contribution) found in contributions.py helps visualise the spectral components of specific species and their contribution to the spectrum.
The function first computes all the hydrostatic equations assuming all the species are in the atmosphere. It then removes all the opacities of the species except for the one whose contribution is being visualised (i.e. the function uses the ‘put-one-in’ approach).
In the function, you list out which gas species you want in the contribution_species_list.
You then can list out cloud_species_list if you are using compositionally-specific aerosols (the function also requires that cloud_contribution = True in order to show cloud contributions).
If you are not using compositionally specific aerosols and instead are using a gray cloud deck or power law haze, you can set cloud_total_contribution = True to see the contribution of opaque decks, hazes, and the combined cloud opacity of combined clouds models (this setting was used in the “Clouds in Transmission Spectra” tutorial).
If you want to see the baseline continuum opacity (set in this case by \(\rm{H_2}\) and \(\rm{He}\) collision induced absorption), set bulk species = True.
The function returns the full spectrum (spectrum), the names of each spectrum computed, and the list of contribution spectra.
[7]:
from POSEIDON.contributions import spectral_contribution
spectrum, spectrum_contribution_list_names, \
spectrum_contribution_list = spectral_contribution(planet, star, model_contribution_transmission,
atmosphere_contribution_transmission, opac, wl,
contribution_species_list = ['CH4', 'CO', 'CO2', 'HCN', 'H2O', 'K', 'Na', 'NH3'], # <--- List gas species here
cloud_species_list = ['MgSiO3'], # <--- List aerosol species here
bulk_species = True, # <--- To see bulk species contribution, set this True
cloud_contribution = True, # <--- To see cloud or aerosol contribution, set this True
)
Once the function above has finished running, we can then plot our spectral contribution visual.
To plot, use the plot_spectral_contribution function
In this function, you can define the line widths as well as colors
We recommend the full spectrum being a large line width, and then then the contribution spectra being smaller so that they can be seen overlaying the full spectrum.

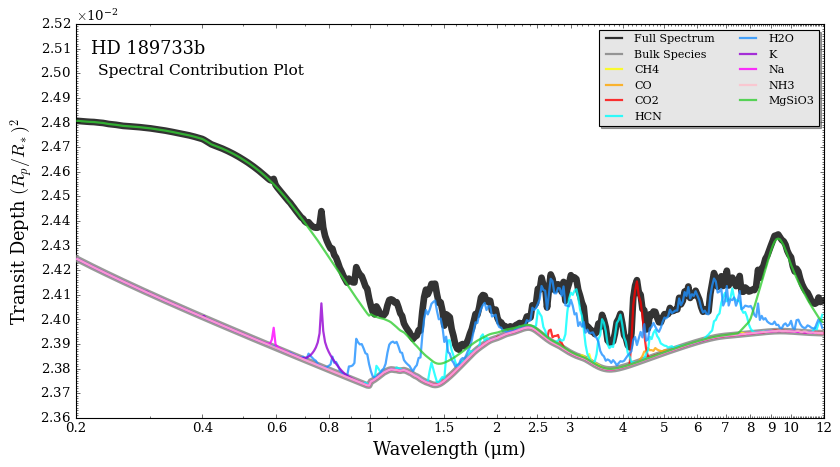

Below, we can see that \(\rm{H_2 O}\), \(\rm{HCN}\), \(\rm{CO_2}\), and \(\rm{MgSiO_3}\) contribute the most to the spectrum whereas other gas species do not.
[8]:
from POSEIDON.contributions import plot_spectral_contribution
plot_spectral_contribution(planet, wl, spectrum, spectrum_contribution_list_names, spectrum_contribution_list,
line_width_list = [6,6,2,2,2,2,2,2,2,2,2],
colour_list = ['black', 'gray', 'yellow','orange', 'red', 'aqua', 'dodgerblue',
'darkviolet','magenta','pink','limegreen'],
save_fig = True)
If you wish to have more control over the spectra, you can also use the normal plot_spectra function.
[ ]:
# Print the list of spectra contained in spectrum_contribution_list
print(spectrum_contribution_list_names)
['Bulk Species', 'CH4', 'CO', 'CO2', 'HCN', 'H2O', 'K', 'Na', 'NH3', 'MgSiO3']
[19]:
from POSEIDON.visuals import plot_spectra
from POSEIDON.utility import plot_collection
spectra = []
# Bulk Species
spectra = plot_collection(spectrum_contribution_list[0], wl, collection = spectra)
# CO2
spectra = plot_collection(spectrum_contribution_list[3], wl, collection = spectra)
# HCN
spectra = plot_collection(spectrum_contribution_list[4], wl, collection = spectra)
# H2O
spectra = plot_collection(spectrum_contribution_list[5], wl, collection = spectra)
# K
spectra = plot_collection(spectrum_contribution_list[6], wl, collection = spectra)
# Na
spectra = plot_collection(spectrum_contribution_list[7], wl, collection = spectra)
# MgSiO3
spectra = plot_collection(spectrum_contribution_list[9], wl, collection = spectra)
# Full Spectrum
spectra = plot_collection(spectrum, wl, collection = spectra)

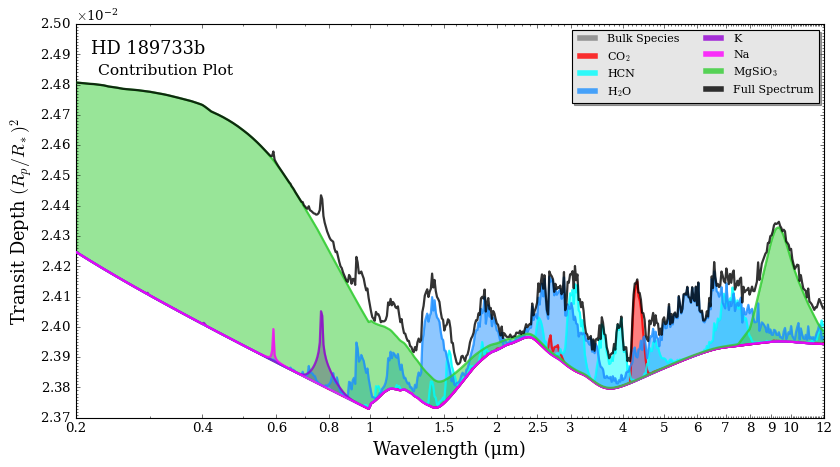

fig = plot_spectra(spectra, planet, R_to_bin = 150,
plot_full_res = False,
plt_label = 'Contribution Plot',
save_fig = False,
figure_shape = 'wide',
spectra_labels = ['Bulk Species', 'CO$_2$', 'HCN', 'H$_2$O','K', 'Na', 'MgSiO$_3$', 'Full Spectrum'],
legend_line_size = [5,5,5,5,5,5,5,5],
colour_list = ['gray', 'red', 'aqua', 'dodgerblue',
'darkviolet','magenta','limegreen','black'],
fill_between = [False,True,True,True,True,True,True,False],
fill_between_alpha = [0,0.5,0.5,0.5,0.5,0.5,0.5,0],
fill_to_spectrum = spectrum_contribution_list[0],
show_legend = True,
y_min = 2.37e-2, y_max = 2.5e-2
)
Pressure Contribution
The pressure contribution function goes layer by layer, removes an opacity source, and recomputes the spectrum, and takes the difference with the full spectrum.
There is an option to do the total pressure contribution (which removes each layer’s entire opacity source) or specific opacity sources.
Do note, however, that this process is slower than making a normal spectrum (since opacities must be calculated \(N_{\rm{layers}}\) times).
We compute the total pressure contribution and water’s pressure contribution below.
Since this is transmission, we expect all the contribution to be coming from high up in the atmosphere.
To create the pressure contribution, run the pressure_contribution function below, which has has a similar set up to the spectral contribution function above. Here we have verbose turned on, which prints the layer number the function is on (the Pressure array has 100 layers), which is a good gauge for how long the spectrum will take to compute.
Contribution is an array with dimensions P vs wl vs contribution species. The norm is returned, but not used. The list names are used in plotting.
The plotting functions will return a normal contribution plot and, optionally, a log version.
[9]:
from POSEIDON.contributions import pressure_contribution, plot_pressure_contribution
Contribution, norm, \
spectrum_contribution_list_names = pressure_contribution(planet, star, model_contribution_transmission,
atmosphere_contribution_transmission, opac, wl,
spectrum_type = 'transmission',
bulk_species = False,
cloud_contribution = False,
total_pressure_contribution = True,
)
Progress: 100%|██████████| 100/100 [00:33<00:00, 2.95it/s]
[10]:
plot_pressure_contribution(wl, P, planet, Contribution,
spectrum_contribution_list_names, R = 100,
show_log_plot = False, save_fig = True)

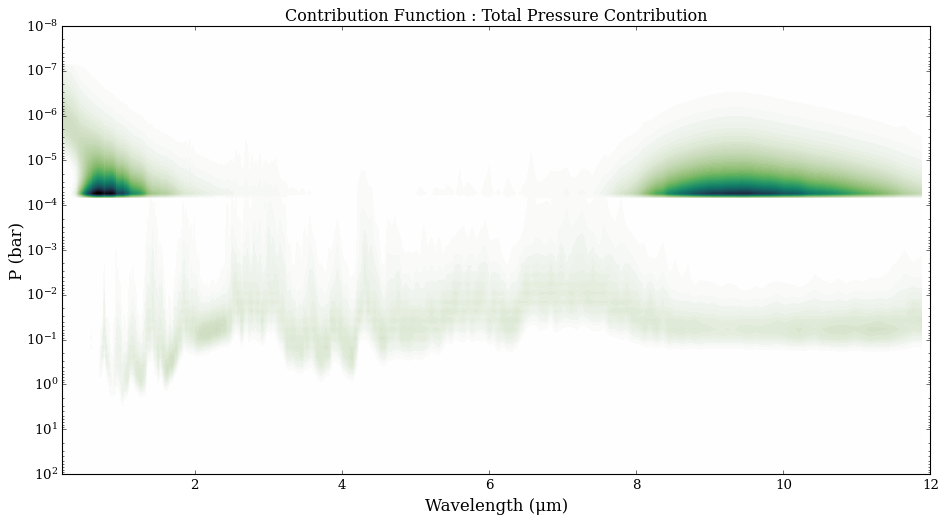

In the pressure contribution plot, we can really see the slab cloud in the upper atmosphere dominating the spectrum.
Now let’s look at the contribution from water alone.
[11]:
from POSEIDON.contributions import pressure_contribution, plot_pressure_contribution
Contribution_water, norm_water, \
spectrum_contribution_list_names_water = pressure_contribution(planet, star, model_contribution_transmission,
atmosphere_contribution_transmission, opac, wl,
spectrum_type = 'transmission',
contribution_species_list = ['H2O'],
bulk_species = False,
cloud_contribution = False,
total_pressure_contribution=False,
)
Progress: 100%|██████████| 100/100 [00:36<00:00, 2.74it/s]

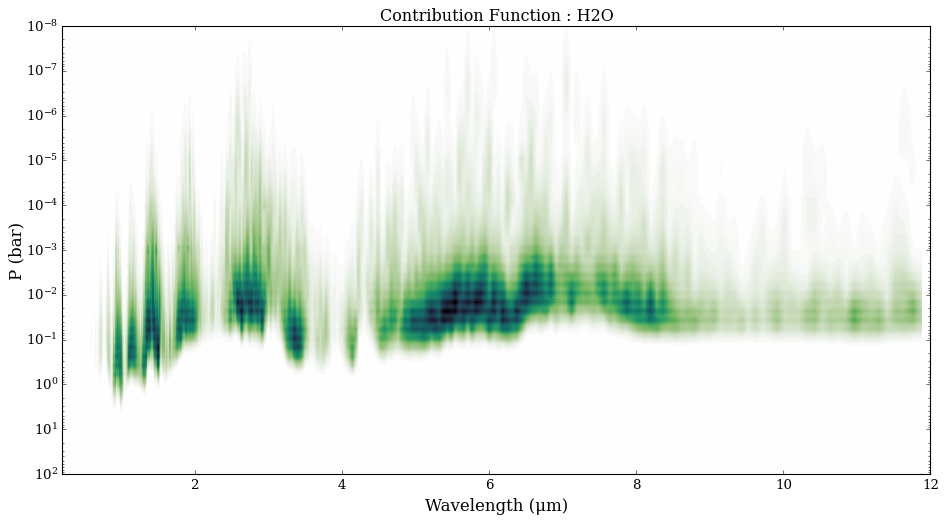

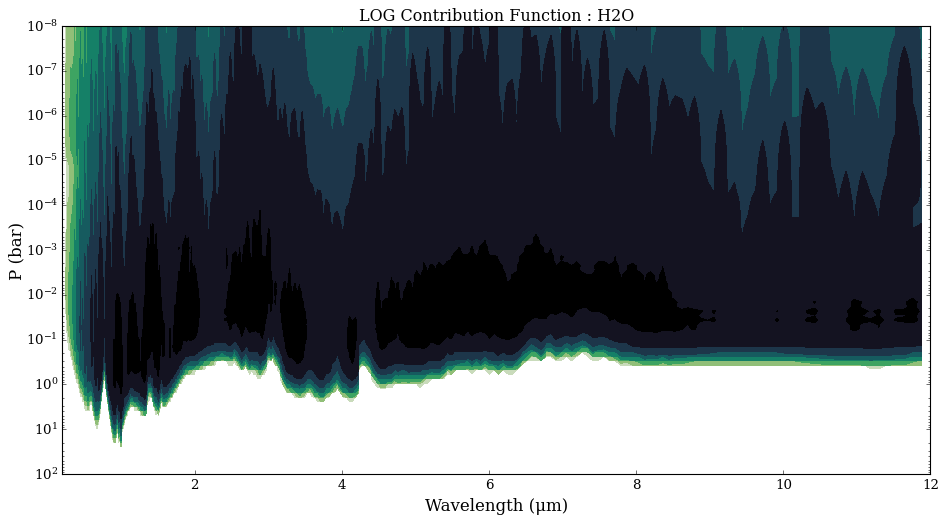

[12]:
plot_pressure_contribution(wl, P, planet, Contribution_water,
spectrum_contribution_list_names_water, R = 100,
show_log_plot = True, save_fig = True,
file_label = 'H2O')

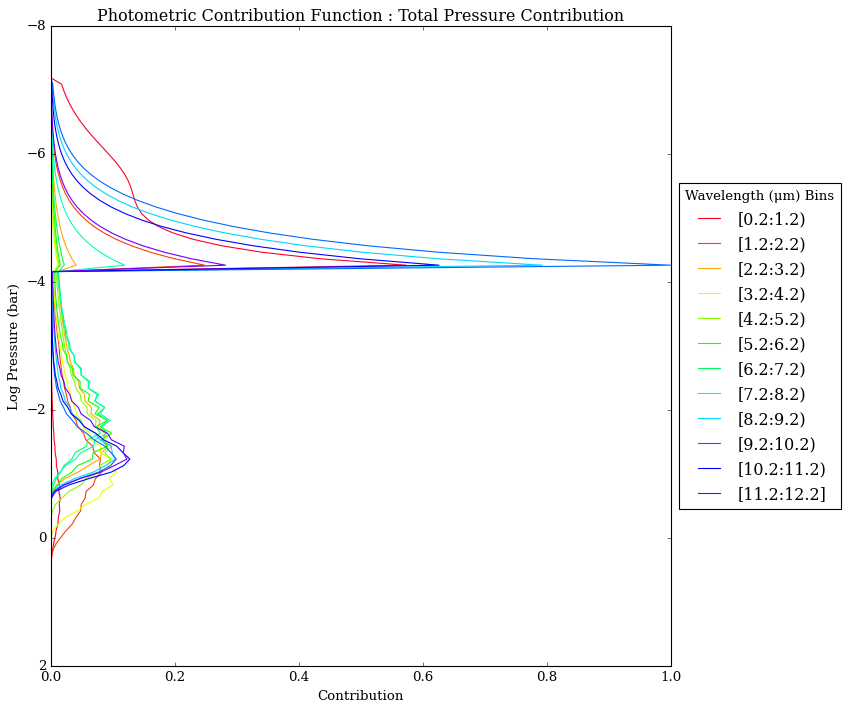

Photometric Contribution
The pressure contribution function can also be integrated over a specific wavelength range to produce a ‘photometric’ pressure contribution function.
We recommend wavelength bins of size \(\Delta \lambda = 1\) um, to show which pressure layers contribute most over a given wavelength range.
The plotting function below will plot the binned contributions, then the total over all wavelengths.

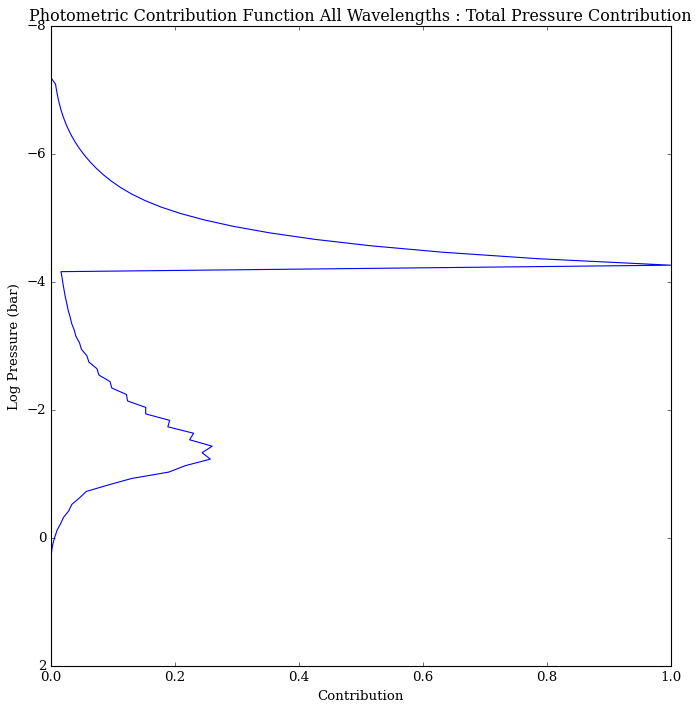

[13]:
from POSEIDON.contributions import photometric_contribution_function, plot_photometric_contribution
photometric_contribution, \
photometric_all_wavelengths, bins = photometric_contribution_function(wl, P, Contribution,
spectrum_contribution_list_names,
binsize = 1)
plot_photometric_contribution(P, planet, photometric_contribution, photometric_all_wavelengths,
spectrum_contribution_list_names, bins = bins,
save_fig = True)

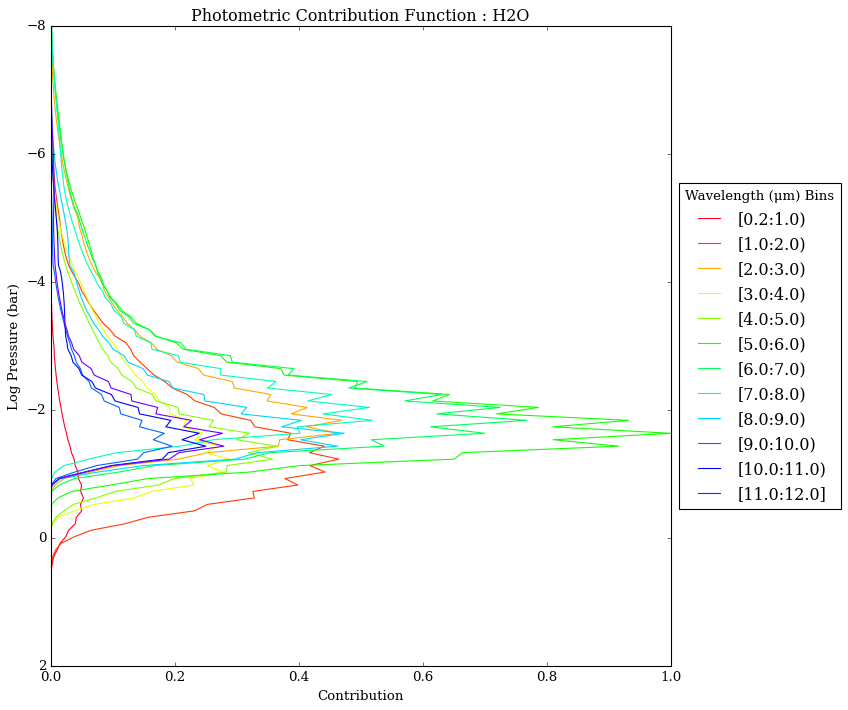

[14]:
from POSEIDON.contributions import photometric_contribution_function, plot_photometric_contribution
photometric_contribution, \
photometric_all_wavelengths, bins = photometric_contribution_function(wl, P, Contribution_water,
spectrum_contribution_list_names_water,
binsize = 1)
plot_photometric_contribution(P, planet, photometric_contribution, photometric_all_wavelengths,
spectrum_contribution_list_names_water, bins = bins,
save_fig = True, file_label = 'H2O')

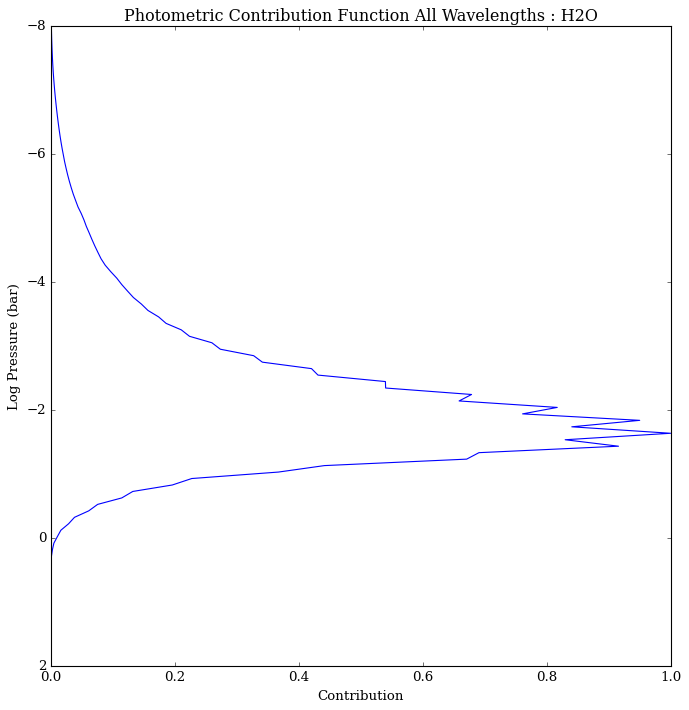

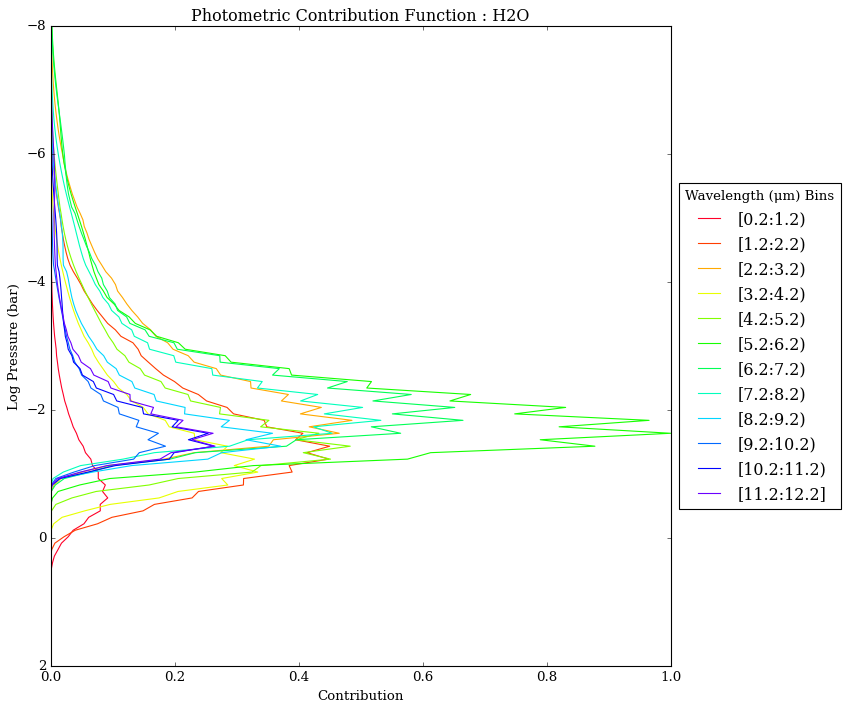

There is an option to set the minimum wavelength as 0, so that the wavelength bins appear a bit nicer.
[15]:
from POSEIDON.contributions import photometric_contribution_function, plot_photometric_contribution
photometric_contribution, \
photometric_all_wavelengths, bins = photometric_contribution_function(wl, P, Contribution_water,
spectrum_contribution_list_names_water,
binsize = 1,
treat_wlmin_as_zero = True)
plot_photometric_contribution(P, planet, photometric_contribution, photometric_all_wavelengths,
spectrum_contribution_list_names_water, bins = bins)
